Instance rocket100

Formats ams gms mod nl osil py
Primal Bounds (infeas ≤ 1e-08)
-1.01283190 p1 ( gdx sol )
(infeas: 2e-11)
Other points (infeas > 1e-08)
Dual Bounds
-1.07818245 (ANTIGONE)
-1.01283202 (COUENNE)
-1.01283190 (LINDO)
-1.02702250 (SCIP)
-316.22776600 (SHOT)
References Bryson, Arthur E, Dynamic Optimization, Addison Wesley, 1999.
Dolan, E D and More, J J, Benchmarking Optimization Software with COPS, Tech. Rep. ANL/MCS-246, Mathematics and Computer Science Division, 2000.
Source GAMS Model Library model rocket, Constrained Optimization Problem Set (COPS)
Application Rockets
Added to library 31 Jul 2001
Problem type NLP
#Variables 607
#Binary Variables 0
#Integer Variables 0
#Nonlinear Variables 607
#Nonlinear Binary Variables 0
#Nonlinear Integer Variables 0
Objective Sense min
Objective type linear
Objective curvature linear
#Nonzeros in Objective 1
#Nonlinear Nonzeros in Objective 0
#Constraints 502
#Linear Constraints 0
#Quadratic Constraints 200
#Polynomial Constraints 0
#Signomial Constraints 201
#General Nonlinear Constraints 101
Operands in Gen. Nonlin. Functions exp mul sqr
Constraints curvature indefinite
#Nonzeros in Jacobian 2605
#Nonlinear Nonzeros in Jacobian 1803
#Nonzeros in (Upper-Left) Hessian of Lagrangian 2121
#Nonzeros in Diagonal of Hessian of Lagrangian 303
#Blocks in Hessian of Lagrangian 1
Minimal blocksize in Hessian of Lagrangian 607
Maximal blocksize in Hessian of Lagrangian 607
Average blocksize in Hessian of Lagrangian 607.0
#Semicontinuities 0
#Nonlinear Semicontinuities 0
#SOS type 1 0
#SOS type 2 0
Minimal coefficient 5.0000e-01
Maximal coefficient 5.0000e+02
Infeasibility of initial point 19.38
Sparsity Jacobian Sparsity of Objective Gradient and Jacobian

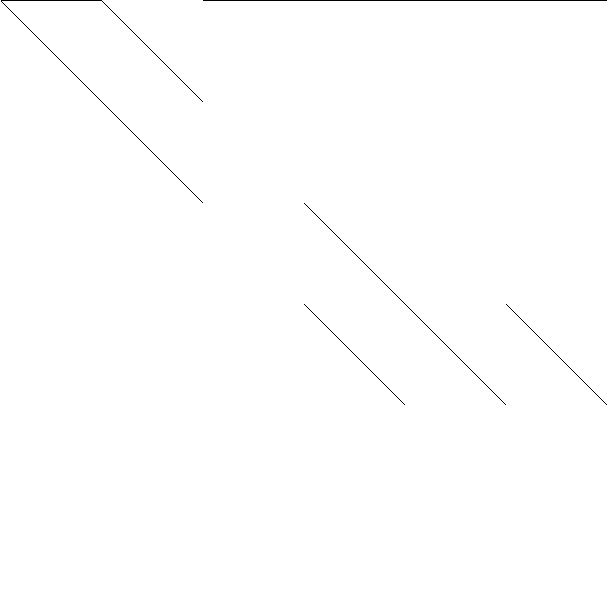

Sparsity Hessian of Lagrangian Sparsity of Hessian of Lagrangian

$offlisting
*
*  Equation counts
*      Total        E        G        L        N        X        C        B
*        503      503        0        0        0        0        0        0
*
*  Variable counts
*                   x        b        i      s1s      s2s       sc       si
*      Total     cont   binary  integer     sos1     sos2    scont     sint
*        608      608        0        0        0        0        0        0
*  FX      4
*
*  Nonzero counts
*      Total    const       NL      DLL
*       2607      804     1803        0
*
*  Solve m using NLP minimizing objvar;


Variables  objvar,x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17,x18
          ,x19,x20,x21,x22,x23,x24,x25,x26,x27,x28,x29,x30,x31,x32,x33,x34,x35
          ,x36,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50,x51,x52
          ,x53,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68,x69
          ,x70,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85,x86
          ,x87,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101,x102
          ,x103,x104,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114,x115
          ,x116,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127,x128
          ,x129,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140,x141
          ,x142,x143,x144,x145,x146,x147,x148,x149,x150,x151,x152,x153,x154
          ,x155,x156,x157,x158,x159,x160,x161,x162,x163,x164,x165,x166,x167
          ,x168,x169,x170,x171,x172,x173,x174,x175,x176,x177,x178,x179,x180
          ,x181,x182,x183,x184,x185,x186,x187,x188,x189,x190,x191,x192,x193
          ,x194,x195,x196,x197,x198,x199,x200,x201,x202,x203,x204,x205,x206
          ,x207,x208,x209,x210,x211,x212,x213,x214,x215,x216,x217,x218,x219
          ,x220,x221,x222,x223,x224,x225,x226,x227,x228,x229,x230,x231,x232
          ,x233,x234,x235,x236,x237,x238,x239,x240,x241,x242,x243,x244,x245
          ,x246,x247,x248,x249,x250,x251,x252,x253,x254,x255,x256,x257,x258
          ,x259,x260,x261,x262,x263,x264,x265,x266,x267,x268,x269,x270,x271
          ,x272,x273,x274,x275,x276,x277,x278,x279,x280,x281,x282,x283,x284
          ,x285,x286,x287,x288,x289,x290,x291,x292,x293,x294,x295,x296,x297
          ,x298,x299,x300,x301,x302,x303,x304,x305,x306,x307,x308,x309,x310
          ,x311,x312,x313,x314,x315,x316,x317,x318,x319,x320,x321,x322,x323
          ,x324,x325,x326,x327,x328,x329,x330,x331,x332,x333,x334,x335,x336
          ,x337,x338,x339,x340,x341,x342,x343,x344,x345,x346,x347,x348,x349
          ,x350,x351,x352,x353,x354,x355,x356,x357,x358,x359,x360,x361,x362
          ,x363,x364,x365,x366,x367,x368,x369,x370,x371,x372,x373,x374,x375
          ,x376,x377,x378,x379,x380,x381,x382,x383,x384,x385,x386,x387,x388
          ,x389,x390,x391,x392,x393,x394,x395,x396,x397,x398,x399,x400,x401
          ,x402,x403,x404,x405,x406,x407,x408,x409,x410,x411,x412,x413,x414
          ,x415,x416,x417,x418,x419,x420,x421,x422,x423,x424,x425,x426,x427
          ,x428,x429,x430,x431,x432,x433,x434,x435,x436,x437,x438,x439,x440
          ,x441,x442,x443,x444,x445,x446,x447,x448,x449,x450,x451,x452,x453
          ,x454,x455,x456,x457,x458,x459,x460,x461,x462,x463,x464,x465,x466
          ,x467,x468,x469,x470,x471,x472,x473,x474,x475,x476,x477,x478,x479
          ,x480,x481,x482,x483,x484,x485,x486,x487,x488,x489,x490,x491,x492
          ,x493,x494,x495,x496,x497,x498,x499,x500,x501,x502,x503,x504,x505
          ,x506,x507,x508,x509,x510,x511,x512,x513,x514,x515,x516,x517,x518
          ,x519,x520,x521,x522,x523,x524,x525,x526,x527,x528,x529,x530,x531
          ,x532,x533,x534,x535,x536,x537,x538,x539,x540,x541,x542,x543,x544
          ,x545,x546,x547,x548,x549,x550,x551,x552,x553,x554,x555,x556,x557
          ,x558,x559,x560,x561,x562,x563,x564,x565,x566,x567,x568,x569,x570
          ,x571,x572,x573,x574,x575,x576,x577,x578,x579,x580,x581,x582,x583
          ,x584,x585,x586,x587,x588,x589,x590,x591,x592,x593,x594,x595,x596
          ,x597,x598,x599,x600,x601,x602,x603,x604,x605,x606,x607,x608;

Positive Variables  x2,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17,x18
          ,x19,x20,x21,x22,x23,x24,x25,x26,x27,x28,x29,x30,x31,x32,x33,x34,x35
          ,x36,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50,x51,x52
          ,x53,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68,x69
          ,x70,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85,x86
          ,x87,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101,x102
          ,x103,x205,x206,x207,x208,x209,x210,x211,x212,x213,x214,x215,x216
          ,x217,x218,x219,x220,x221,x222,x223,x224,x225,x226,x227,x228,x229
          ,x230,x231,x232,x233,x234,x235,x236,x237,x238,x239,x240,x241,x242
          ,x243,x244,x245,x246,x247,x248,x249,x250,x251,x252,x253,x254,x255
          ,x256,x257,x258,x259,x260,x261,x262,x263,x264,x265,x266,x267,x268
          ,x269,x270,x271,x272,x273,x274,x275,x276,x277,x278,x279,x280,x281
          ,x282,x283,x284,x285,x286,x287,x288,x289,x290,x291,x292,x293,x294
          ,x295,x296,x297,x298,x299,x300,x301,x302,x303,x304,x305,x407,x408
          ,x409,x410,x411,x412,x413,x414,x415,x416,x417,x418,x419,x420,x421
          ,x422,x423,x424,x425,x426,x427,x428,x429,x430,x431,x432,x433,x434
          ,x435,x436,x437,x438,x439,x440,x441,x442,x443,x444,x445,x446,x447
          ,x448,x449,x450,x451,x452,x453,x454,x455,x456,x457,x458,x459,x460
          ,x461,x462,x463,x464,x465,x466,x467,x468,x469,x470,x471,x472,x473
          ,x474,x475,x476,x477,x478,x479,x480,x481,x482,x483,x484,x485,x486
          ,x487,x488,x489,x490,x491,x492,x493,x494,x495,x496,x497,x498,x499
          ,x500,x501,x502,x503,x504,x505,x506,x507,x508,x509,x510,x511,x512
          ,x513,x514,x515,x516,x517,x518,x519,x520,x521,x522,x523,x524,x525
          ,x526,x527,x528,x529,x530,x531,x532,x533,x534,x535,x536,x537,x538
          ,x539,x540,x541,x542,x543,x544,x545,x546,x547,x548,x549,x550,x551
          ,x552,x553,x554,x555,x556,x557,x558,x559,x560,x561,x562,x563,x564
          ,x565,x566,x567,x568,x569,x570,x571,x572,x573,x574,x575,x576,x577
          ,x578,x579,x580,x581,x582,x583,x584,x585,x586,x587,x588,x589,x590
          ,x591,x592,x593,x594,x595,x596,x597,x598,x599,x600,x601,x602,x603
          ,x604,x605,x606,x607,x608;

Equations  e1,e2,e3,e4,e5,e6,e7,e8,e9,e10,e11,e12,e13,e14,e15,e16,e17,e18,e19
          ,e20,e21,e22,e23,e24,e25,e26,e27,e28,e29,e30,e31,e32,e33,e34,e35,e36
          ,e37,e38,e39,e40,e41,e42,e43,e44,e45,e46,e47,e48,e49,e50,e51,e52,e53
          ,e54,e55,e56,e57,e58,e59,e60,e61,e62,e63,e64,e65,e66,e67,e68,e69,e70
          ,e71,e72,e73,e74,e75,e76,e77,e78,e79,e80,e81,e82,e83,e84,e85,e86,e87
          ,e88,e89,e90,e91,e92,e93,e94,e95,e96,e97,e98,e99,e100,e101,e102,e103
          ,e104,e105,e106,e107,e108,e109,e110,e111,e112,e113,e114,e115,e116
          ,e117,e118,e119,e120,e121,e122,e123,e124,e125,e126,e127,e128,e129
          ,e130,e131,e132,e133,e134,e135,e136,e137,e138,e139,e140,e141,e142
          ,e143,e144,e145,e146,e147,e148,e149,e150,e151,e152,e153,e154,e155
          ,e156,e157,e158,e159,e160,e161,e162,e163,e164,e165,e166,e167,e168
          ,e169,e170,e171,e172,e173,e174,e175,e176,e177,e178,e179,e180,e181
          ,e182,e183,e184,e185,e186,e187,e188,e189,e190,e191,e192,e193,e194
          ,e195,e196,e197,e198,e199,e200,e201,e202,e203,e204,e205,e206,e207
          ,e208,e209,e210,e211,e212,e213,e214,e215,e216,e217,e218,e219,e220
          ,e221,e222,e223,e224,e225,e226,e227,e228,e229,e230,e231,e232,e233
          ,e234,e235,e236,e237,e238,e239,e240,e241,e242,e243,e244,e245,e246
          ,e247,e248,e249,e250,e251,e252,e253,e254,e255,e256,e257,e258,e259
          ,e260,e261,e262,e263,e264,e265,e266,e267,e268,e269,e270,e271,e272
          ,e273,e274,e275,e276,e277,e278,e279,e280,e281,e282,e283,e284,e285
          ,e286,e287,e288,e289,e290,e291,e292,e293,e294,e295,e296,e297,e298
          ,e299,e300,e301,e302,e303,e304,e305,e306,e307,e308,e309,e310,e311
          ,e312,e313,e314,e315,e316,e317,e318,e319,e320,e321,e322,e323,e324
          ,e325,e326,e327,e328,e329,e330,e331,e332,e333,e334,e335,e336,e337
          ,e338,e339,e340,e341,e342,e343,e344,e345,e346,e347,e348,e349,e350
          ,e351,e352,e353,e354,e355,e356,e357,e358,e359,e360,e361,e362,e363
          ,e364,e365,e366,e367,e368,e369,e370,e371,e372,e373,e374,e375,e376
          ,e377,e378,e379,e380,e381,e382,e383,e384,e385,e386,e387,e388,e389
          ,e390,e391,e392,e393,e394,e395,e396,e397,e398,e399,e400,e401,e402
          ,e403,e404,e405,e406,e407,e408,e409,e410,e411,e412,e413,e414,e415
          ,e416,e417,e418,e419,e420,e421,e422,e423,e424,e425,e426,e427,e428
          ,e429,e430,e431,e432,e433,e434,e435,e436,e437,e438,e439,e440,e441
          ,e442,e443,e444,e445,e446,e447,e448,e449,e450,e451,e452,e453,e454
          ,e455,e456,e457,e458,e459,e460,e461,e462,e463,e464,e465,e466,e467
          ,e468,e469,e470,e471,e472,e473,e474,e475,e476,e477,e478,e479,e480
          ,e481,e482,e483,e484,e485,e486,e487,e488,e489,e490,e491,e492,e493
          ,e494,e495,e496,e497,e498,e499,e500,e501,e502,e503;


e1.. -310*sqr(x3)*exp(500 - 500*x104) + x508 =E= 0;

e2.. -310*sqr(x4)*exp(500 - 500*x105) + x509 =E= 0;

e3.. -310*sqr(x5)*exp(500 - 500*x106) + x510 =E= 0;

e4.. -310*sqr(x6)*exp(500 - 500*x107) + x511 =E= 0;

e5.. -310*sqr(x7)*exp(500 - 500*x108) + x512 =E= 0;

e6.. -310*sqr(x8)*exp(500 - 500*x109) + x513 =E= 0;

e7.. -310*sqr(x9)*exp(500 - 500*x110) + x514 =E= 0;

e8.. -310*sqr(x10)*exp(500 - 500*x111) + x515 =E= 0;

e9.. -310*sqr(x11)*exp(500 - 500*x112) + x516 =E= 0;

e10.. -310*sqr(x12)*exp(500 - 500*x113) + x517 =E= 0;

e11.. -310*sqr(x13)*exp(500 - 500*x114) + x518 =E= 0;

e12.. -310*sqr(x14)*exp(500 - 500*x115) + x519 =E= 0;

e13.. -310*sqr(x15)*exp(500 - 500*x116) + x520 =E= 0;

e14.. -310*sqr(x16)*exp(500 - 500*x117) + x521 =E= 0;

e15.. -310*sqr(x17)*exp(500 - 500*x118) + x522 =E= 0;

e16.. -310*sqr(x18)*exp(500 - 500*x119) + x523 =E= 0;

e17.. -310*sqr(x19)*exp(500 - 500*x120) + x524 =E= 0;

e18.. -310*sqr(x20)*exp(500 - 500*x121) + x525 =E= 0;

e19.. -310*sqr(x21)*exp(500 - 500*x122) + x526 =E= 0;

e20.. -310*sqr(x22)*exp(500 - 500*x123) + x527 =E= 0;

e21.. -310*sqr(x23)*exp(500 - 500*x124) + x528 =E= 0;

e22.. -310*sqr(x24)*exp(500 - 500*x125) + x529 =E= 0;

e23.. -310*sqr(x25)*exp(500 - 500*x126) + x530 =E= 0;

e24.. -310*sqr(x26)*exp(500 - 500*x127) + x531 =E= 0;

e25.. -310*sqr(x27)*exp(500 - 500*x128) + x532 =E= 0;

e26.. -310*sqr(x28)*exp(500 - 500*x129) + x533 =E= 0;

e27.. -310*sqr(x29)*exp(500 - 500*x130) + x534 =E= 0;

e28.. -310*sqr(x30)*exp(500 - 500*x131) + x535 =E= 0;

e29.. -310*sqr(x31)*exp(500 - 500*x132) + x536 =E= 0;

e30.. -310*sqr(x32)*exp(500 - 500*x133) + x537 =E= 0;

e31.. -310*sqr(x33)*exp(500 - 500*x134) + x538 =E= 0;

e32.. -310*sqr(x34)*exp(500 - 500*x135) + x539 =E= 0;

e33.. -310*sqr(x35)*exp(500 - 500*x136) + x540 =E= 0;

e34.. -310*sqr(x36)*exp(500 - 500*x137) + x541 =E= 0;

e35.. -310*sqr(x37)*exp(500 - 500*x138) + x542 =E= 0;

e36.. -310*sqr(x38)*exp(500 - 500*x139) + x543 =E= 0;

e37.. -310*sqr(x39)*exp(500 - 500*x140) + x544 =E= 0;

e38.. -310*sqr(x40)*exp(500 - 500*x141) + x545 =E= 0;

e39.. -310*sqr(x41)*exp(500 - 500*x142) + x546 =E= 0;

e40.. -310*sqr(x42)*exp(500 - 500*x143) + x547 =E= 0;

e41.. -310*sqr(x43)*exp(500 - 500*x144) + x548 =E= 0;

e42.. -310*sqr(x44)*exp(500 - 500*x145) + x549 =E= 0;

e43.. -310*sqr(x45)*exp(500 - 500*x146) + x550 =E= 0;

e44.. -310*sqr(x46)*exp(500 - 500*x147) + x551 =E= 0;

e45.. -310*sqr(x47)*exp(500 - 500*x148) + x552 =E= 0;

e46.. -310*sqr(x48)*exp(500 - 500*x149) + x553 =E= 0;

e47.. -310*sqr(x49)*exp(500 - 500*x150) + x554 =E= 0;

e48.. -310*sqr(x50)*exp(500 - 500*x151) + x555 =E= 0;

e49.. -310*sqr(x51)*exp(500 - 500*x152) + x556 =E= 0;

e50.. -310*sqr(x52)*exp(500 - 500*x153) + x557 =E= 0;

e51.. -310*sqr(x53)*exp(500 - 500*x154) + x558 =E= 0;

e52.. -310*sqr(x54)*exp(500 - 500*x155) + x559 =E= 0;

e53.. -310*sqr(x55)*exp(500 - 500*x156) + x560 =E= 0;

e54.. -310*sqr(x56)*exp(500 - 500*x157) + x561 =E= 0;

e55.. -310*sqr(x57)*exp(500 - 500*x158) + x562 =E= 0;

e56.. -310*sqr(x58)*exp(500 - 500*x159) + x563 =E= 0;

e57.. -310*sqr(x59)*exp(500 - 500*x160) + x564 =E= 0;

e58.. -310*sqr(x60)*exp(500 - 500*x161) + x565 =E= 0;

e59.. -310*sqr(x61)*exp(500 - 500*x162) + x566 =E= 0;

e60.. -310*sqr(x62)*exp(500 - 500*x163) + x567 =E= 0;

e61.. -310*sqr(x63)*exp(500 - 500*x164) + x568 =E= 0;

e62.. -310*sqr(x64)*exp(500 - 500*x165) + x569 =E= 0;

e63.. -310*sqr(x65)*exp(500 - 500*x166) + x570 =E= 0;

e64.. -310*sqr(x66)*exp(500 - 500*x167) + x571 =E= 0;

e65.. -310*sqr(x67)*exp(500 - 500*x168) + x572 =E= 0;

e66.. -310*sqr(x68)*exp(500 - 500*x169) + x573 =E= 0;

e67.. -310*sqr(x69)*exp(500 - 500*x170) + x574 =E= 0;

e68.. -310*sqr(x70)*exp(500 - 500*x171) + x575 =E= 0;

e69.. -310*sqr(x71)*exp(500 - 500*x172) + x576 =E= 0;

e70.. -310*sqr(x72)*exp(500 - 500*x173) + x577 =E= 0;

e71.. -310*sqr(x73)*exp(500 - 500*x174) + x578 =E= 0;

e72.. -310*sqr(x74)*exp(500 - 500*x175) + x579 =E= 0;

e73.. -310*sqr(x75)*exp(500 - 500*x176) + x580 =E= 0;

e74.. -310*sqr(x76)*exp(500 - 500*x177) + x581 =E= 0;

e75.. -310*sqr(x77)*exp(500 - 500*x178) + x582 =E= 0;

e76.. -310*sqr(x78)*exp(500 - 500*x179) + x583 =E= 0;

e77.. -310*sqr(x79)*exp(500 - 500*x180) + x584 =E= 0;

e78.. -310*sqr(x80)*exp(500 - 500*x181) + x585 =E= 0;

e79.. -310*sqr(x81)*exp(500 - 500*x182) + x586 =E= 0;

e80.. -310*sqr(x82)*exp(500 - 500*x183) + x587 =E= 0;

e81.. -310*sqr(x83)*exp(500 - 500*x184) + x588 =E= 0;

e82.. -310*sqr(x84)*exp(500 - 500*x185) + x589 =E= 0;

e83.. -310*sqr(x85)*exp(500 - 500*x186) + x590 =E= 0;

e84.. -310*sqr(x86)*exp(500 - 500*x187) + x591 =E= 0;

e85.. -310*sqr(x87)*exp(500 - 500*x188) + x592 =E= 0;

e86.. -310*sqr(x88)*exp(500 - 500*x189) + x593 =E= 0;

e87.. -310*sqr(x89)*exp(500 - 500*x190) + x594 =E= 0;

e88.. -310*sqr(x90)*exp(500 - 500*x191) + x595 =E= 0;

e89.. -310*sqr(x91)*exp(500 - 500*x192) + x596 =E= 0;

e90.. -310*sqr(x92)*exp(500 - 500*x193) + x597 =E= 0;

e91.. -310*sqr(x93)*exp(500 - 500*x194) + x598 =E= 0;

e92.. -310*sqr(x94)*exp(500 - 500*x195) + x599 =E= 0;

e93.. -310*sqr(x95)*exp(500 - 500*x196) + x600 =E= 0;

e94.. -310*sqr(x96)*exp(500 - 500*x197) + x601 =E= 0;

e95.. -310*sqr(x97)*exp(500 - 500*x198) + x602 =E= 0;

e96.. -310*sqr(x98)*exp(500 - 500*x199) + x603 =E= 0;

e97.. -310*sqr(x99)*exp(500 - 500*x200) + x604 =E= 0;

e98.. -310*sqr(x100)*exp(500 - 500*x201) + x605 =E= 0;

e99.. -310*sqr(x101)*exp(500 - 500*x202) + x606 =E= 0;

e100.. -310*sqr(x102)*exp(500 - 500*x203) + x607 =E= 0;

e101.. -310*sqr(x103)*exp(500 - 500*x204) + x608 =E= 0;

e102.. -sqr(1/x104) + x205 =E= 0;

e103.. -sqr(1/x105) + x206 =E= 0;

e104.. -sqr(1/x106) + x207 =E= 0;

e105.. -sqr(1/x107) + x208 =E= 0;

e106.. -sqr(1/x108) + x209 =E= 0;

e107.. -sqr(1/x109) + x210 =E= 0;

e108.. -sqr(1/x110) + x211 =E= 0;

e109.. -sqr(1/x111) + x212 =E= 0;

e110.. -sqr(1/x112) + x213 =E= 0;

e111.. -sqr(1/x113) + x214 =E= 0;

e112.. -sqr(1/x114) + x215 =E= 0;

e113.. -sqr(1/x115) + x216 =E= 0;

e114.. -sqr(1/x116) + x217 =E= 0;

e115.. -sqr(1/x117) + x218 =E= 0;

e116.. -sqr(1/x118) + x219 =E= 0;

e117.. -sqr(1/x119) + x220 =E= 0;

e118.. -sqr(1/x120) + x221 =E= 0;

e119.. -sqr(1/x121) + x222 =E= 0;

e120.. -sqr(1/x122) + x223 =E= 0;

e121.. -sqr(1/x123) + x224 =E= 0;

e122.. -sqr(1/x124) + x225 =E= 0;

e123.. -sqr(1/x125) + x226 =E= 0;

e124.. -sqr(1/x126) + x227 =E= 0;

e125.. -sqr(1/x127) + x228 =E= 0;

e126.. -sqr(1/x128) + x229 =E= 0;

e127.. -sqr(1/x129) + x230 =E= 0;

e128.. -sqr(1/x130) + x231 =E= 0;

e129.. -sqr(1/x131) + x232 =E= 0;

e130.. -sqr(1/x132) + x233 =E= 0;

e131.. -sqr(1/x133) + x234 =E= 0;

e132.. -sqr(1/x134) + x235 =E= 0;

e133.. -sqr(1/x135) + x236 =E= 0;

e134.. -sqr(1/x136) + x237 =E= 0;

e135.. -sqr(1/x137) + x238 =E= 0;

e136.. -sqr(1/x138) + x239 =E= 0;

e137.. -sqr(1/x139) + x240 =E= 0;

e138.. -sqr(1/x140) + x241 =E= 0;

e139.. -sqr(1/x141) + x242 =E= 0;

e140.. -sqr(1/x142) + x243 =E= 0;

e141.. -sqr(1/x143) + x244 =E= 0;

e142.. -sqr(1/x144) + x245 =E= 0;

e143.. -sqr(1/x145) + x246 =E= 0;

e144.. -sqr(1/x146) + x247 =E= 0;

e145.. -sqr(1/x147) + x248 =E= 0;

e146.. -sqr(1/x148) + x249 =E= 0;

e147.. -sqr(1/x149) + x250 =E= 0;

e148.. -sqr(1/x150) + x251 =E= 0;

e149.. -sqr(1/x151) + x252 =E= 0;

e150.. -sqr(1/x152) + x253 =E= 0;

e151.. -sqr(1/x153) + x254 =E= 0;

e152.. -sqr(1/x154) + x255 =E= 0;

e153.. -sqr(1/x155) + x256 =E= 0;

e154.. -sqr(1/x156) + x257 =E= 0;

e155.. -sqr(1/x157) + x258 =E= 0;

e156.. -sqr(1/x158) + x259 =E= 0;

e157.. -sqr(1/x159) + x260 =E= 0;

e158.. -sqr(1/x160) + x261 =E= 0;

e159.. -sqr(1/x161) + x262 =E= 0;

e160.. -sqr(1/x162) + x263 =E= 0;

e161.. -sqr(1/x163) + x264 =E= 0;

e162.. -sqr(1/x164) + x265 =E= 0;

e163.. -sqr(1/x165) + x266 =E= 0;

e164.. -sqr(1/x166) + x267 =E= 0;

e165.. -sqr(1/x167) + x268 =E= 0;

e166.. -sqr(1/x168) + x269 =E= 0;

e167.. -sqr(1/x169) + x270 =E= 0;

e168.. -sqr(1/x170) + x271 =E= 0;

e169.. -sqr(1/x171) + x272 =E= 0;

e170.. -sqr(1/x172) + x273 =E= 0;

e171.. -sqr(1/x173) + x274 =E= 0;

e172.. -sqr(1/x174) + x275 =E= 0;

e173.. -sqr(1/x175) + x276 =E= 0;

e174.. -sqr(1/x176) + x277 =E= 0;

e175.. -sqr(1/x177) + x278 =E= 0;

e176.. -sqr(1/x178) + x279 =E= 0;

e177.. -sqr(1/x179) + x280 =E= 0;

e178.. -sqr(1/x180) + x281 =E= 0;

e179.. -sqr(1/x181) + x282 =E= 0;

e180.. -sqr(1/x182) + x283 =E= 0;

e181.. -sqr(1/x183) + x284 =E= 0;

e182.. -sqr(1/x184) + x285 =E= 0;

e183.. -sqr(1/x185) + x286 =E= 0;

e184.. -sqr(1/x186) + x287 =E= 0;

e185.. -sqr(1/x187) + x288 =E= 0;

e186.. -sqr(1/x188) + x289 =E= 0;

e187.. -sqr(1/x189) + x290 =E= 0;

e188.. -sqr(1/x190) + x291 =E= 0;

e189.. -sqr(1/x191) + x292 =E= 0;

e190.. -sqr(1/x192) + x293 =E= 0;

e191.. -sqr(1/x193) + x294 =E= 0;

e192.. -sqr(1/x194) + x295 =E= 0;

e193.. -sqr(1/x195) + x296 =E= 0;

e194.. -sqr(1/x196) + x297 =E= 0;

e195.. -sqr(1/x197) + x298 =E= 0;

e196.. -sqr(1/x198) + x299 =E= 0;

e197.. -sqr(1/x199) + x300 =E= 0;

e198.. -sqr(1/x200) + x301 =E= 0;

e199.. -sqr(1/x201) + x302 =E= 0;

e200.. -sqr(1/x202) + x303 =E= 0;

e201.. -sqr(1/x203) + x304 =E= 0;

e202.. -sqr(1/x204) + x305 =E= 0;

e203..  - objvar - x204 =E= 0;

e204.. -0.5*x2*(x3 + x4) - x104 + x105 =E= 0;

e205.. -0.5*x2*(x4 + x5) - x105 + x106 =E= 0;

e206.. -0.5*x2*(x5 + x6) - x106 + x107 =E= 0;

e207.. -0.5*x2*(x6 + x7) - x107 + x108 =E= 0;

e208.. -0.5*x2*(x7 + x8) - x108 + x109 =E= 0;

e209.. -0.5*x2*(x8 + x9) - x109 + x110 =E= 0;

e210.. -0.5*x2*(x9 + x10) - x110 + x111 =E= 0;

e211.. -0.5*x2*(x10 + x11) - x111 + x112 =E= 0;

e212.. -0.5*x2*(x11 + x12) - x112 + x113 =E= 0;

e213.. -0.5*x2*(x12 + x13) - x113 + x114 =E= 0;

e214.. -0.5*x2*(x13 + x14) - x114 + x115 =E= 0;

e215.. -0.5*x2*(x14 + x15) - x115 + x116 =E= 0;

e216.. -0.5*x2*(x15 + x16) - x116 + x117 =E= 0;

e217.. -0.5*x2*(x16 + x17) - x117 + x118 =E= 0;

e218.. -0.5*x2*(x17 + x18) - x118 + x119 =E= 0;

e219.. -0.5*x2*(x18 + x19) - x119 + x120 =E= 0;

e220.. -0.5*x2*(x19 + x20) - x120 + x121 =E= 0;

e221.. -0.5*x2*(x20 + x21) - x121 + x122 =E= 0;

e222.. -0.5*x2*(x21 + x22) - x122 + x123 =E= 0;

e223.. -0.5*x2*(x22 + x23) - x123 + x124 =E= 0;

e224.. -0.5*x2*(x23 + x24) - x124 + x125 =E= 0;

e225.. -0.5*x2*(x24 + x25) - x125 + x126 =E= 0;

e226.. -0.5*x2*(x25 + x26) - x126 + x127 =E= 0;

e227.. -0.5*x2*(x26 + x27) - x127 + x128 =E= 0;

e228.. -0.5*x2*(x27 + x28) - x128 + x129 =E= 0;

e229.. -0.5*x2*(x28 + x29) - x129 + x130 =E= 0;

e230.. -0.5*x2*(x29 + x30) - x130 + x131 =E= 0;

e231.. -0.5*x2*(x30 + x31) - x131 + x132 =E= 0;

e232.. -0.5*x2*(x31 + x32) - x132 + x133 =E= 0;

e233.. -0.5*x2*(x32 + x33) - x133 + x134 =E= 0;

e234.. -0.5*x2*(x33 + x34) - x134 + x135 =E= 0;

e235.. -0.5*x2*(x34 + x35) - x135 + x136 =E= 0;

e236.. -0.5*x2*(x35 + x36) - x136 + x137 =E= 0;

e237.. -0.5*x2*(x36 + x37) - x137 + x138 =E= 0;

e238.. -0.5*x2*(x37 + x38) - x138 + x139 =E= 0;

e239.. -0.5*x2*(x38 + x39) - x139 + x140 =E= 0;

e240.. -0.5*x2*(x39 + x40) - x140 + x141 =E= 0;

e241.. -0.5*x2*(x40 + x41) - x141 + x142 =E= 0;

e242.. -0.5*x2*(x41 + x42) - x142 + x143 =E= 0;

e243.. -0.5*x2*(x42 + x43) - x143 + x144 =E= 0;

e244.. -0.5*x2*(x43 + x44) - x144 + x145 =E= 0;

e245.. -0.5*x2*(x44 + x45) - x145 + x146 =E= 0;

e246.. -0.5*x2*(x45 + x46) - x146 + x147 =E= 0;

e247.. -0.5*x2*(x46 + x47) - x147 + x148 =E= 0;

e248.. -0.5*x2*(x47 + x48) - x148 + x149 =E= 0;

e249.. -0.5*x2*(x48 + x49) - x149 + x150 =E= 0;

e250.. -0.5*x2*(x49 + x50) - x150 + x151 =E= 0;

e251.. -0.5*x2*(x50 + x51) - x151 + x152 =E= 0;

e252.. -0.5*x2*(x51 + x52) - x152 + x153 =E= 0;

e253.. -0.5*x2*(x52 + x53) - x153 + x154 =E= 0;

e254.. -0.5*x2*(x53 + x54) - x154 + x155 =E= 0;

e255.. -0.5*x2*(x54 + x55) - x155 + x156 =E= 0;

e256.. -0.5*x2*(x55 + x56) - x156 + x157 =E= 0;

e257.. -0.5*x2*(x56 + x57) - x157 + x158 =E= 0;

e258.. -0.5*x2*(x57 + x58) - x158 + x159 =E= 0;

e259.. -0.5*x2*(x58 + x59) - x159 + x160 =E= 0;

e260.. -0.5*x2*(x59 + x60) - x160 + x161 =E= 0;

e261.. -0.5*x2*(x60 + x61) - x161 + x162 =E= 0;

e262.. -0.5*x2*(x61 + x62) - x162 + x163 =E= 0;

e263.. -0.5*x2*(x62 + x63) - x163 + x164 =E= 0;

e264.. -0.5*x2*(x63 + x64) - x164 + x165 =E= 0;

e265.. -0.5*x2*(x64 + x65) - x165 + x166 =E= 0;

e266.. -0.5*x2*(x65 + x66) - x166 + x167 =E= 0;

e267.. -0.5*x2*(x66 + x67) - x167 + x168 =E= 0;

e268.. -0.5*x2*(x67 + x68) - x168 + x169 =E= 0;

e269.. -0.5*x2*(x68 + x69) - x169 + x170 =E= 0;

e270.. -0.5*x2*(x69 + x70) - x170 + x171 =E= 0;

e271.. -0.5*x2*(x70 + x71) - x171 + x172 =E= 0;

e272.. -0.5*x2*(x71 + x72) - x172 + x173 =E= 0;

e273.. -0.5*x2*(x72 + x73) - x173 + x174 =E= 0;

e274.. -0.5*x2*(x73 + x74) - x174 + x175 =E= 0;

e275.. -0.5*x2*(x74 + x75) - x175 + x176 =E= 0;

e276.. -0.5*x2*(x75 + x76) - x176 + x177 =E= 0;

e277.. -0.5*x2*(x76 + x77) - x177 + x178 =E= 0;

e278.. -0.5*x2*(x77 + x78) - x178 + x179 =E= 0;

e279.. -0.5*x2*(x78 + x79) - x179 + x180 =E= 0;

e280.. -0.5*x2*(x79 + x80) - x180 + x181 =E= 0;

e281.. -0.5*x2*(x80 + x81) - x181 + x182 =E= 0;

e282.. -0.5*x2*(x81 + x82) - x182 + x183 =E= 0;

e283.. -0.5*x2*(x82 + x83) - x183 + x184 =E= 0;

e284.. -0.5*x2*(x83 + x84) - x184 + x185 =E= 0;

e285.. -0.5*x2*(x84 + x85) - x185 + x186 =E= 0;

e286.. -0.5*x2*(x85 + x86) - x186 + x187 =E= 0;

e287.. -0.5*x2*(x86 + x87) - x187 + x188 =E= 0;

e288.. -0.5*x2*(x87 + x88) - x188 + x189 =E= 0;

e289.. -0.5*x2*(x88 + x89) - x189 + x190 =E= 0;

e290.. -0.5*x2*(x89 + x90) - x190 + x191 =E= 0;

e291.. -0.5*x2*(x90 + x91) - x191 + x192 =E= 0;

e292.. -0.5*x2*(x91 + x92) - x192 + x193 =E= 0;

e293.. -0.5*x2*(x92 + x93) - x193 + x194 =E= 0;

e294.. -0.5*x2*(x93 + x94) - x194 + x195 =E= 0;

e295.. -0.5*x2*(x94 + x95) - x195 + x196 =E= 0;

e296.. -0.5*x2*(x95 + x96) - x196 + x197 =E= 0;

e297.. -0.5*x2*(x96 + x97) - x197 + x198 =E= 0;

e298.. -0.5*x2*(x97 + x98) - x198 + x199 =E= 0;

e299.. -0.5*x2*(x98 + x99) - x199 + x200 =E= 0;

e300.. -0.5*x2*(x99 + x100) - x200 + x201 =E= 0;

e301.. -0.5*x2*(x100 + x101) - x201 + x202 =E= 0;

e302.. -0.5*x2*(x101 + x102) - x202 + x203 =E= 0;

e303.. -0.5*x2*(x102 + x103) - x203 + x204 =E= 0;

e304.. -0.5*((x408 - x307*x206 - x509)/x307 + (x407 - x306*x205 - x508)/x306)*
       x2 - x3 + x4 =E= 0;

e305.. -0.5*((x409 - x308*x207 - x510)/x308 + (x408 - x307*x206 - x509)/x307)*
       x2 - x4 + x5 =E= 0;

e306.. -0.5*((x410 - x309*x208 - x511)/x309 + (x409 - x308*x207 - x510)/x308)*
       x2 - x5 + x6 =E= 0;

e307.. -0.5*((x411 - x310*x209 - x512)/x310 + (x410 - x309*x208 - x511)/x309)*
       x2 - x6 + x7 =E= 0;

e308.. -0.5*((x412 - x311*x210 - x513)/x311 + (x411 - x310*x209 - x512)/x310)*
       x2 - x7 + x8 =E= 0;

e309.. -0.5*((x413 - x312*x211 - x514)/x312 + (x412 - x311*x210 - x513)/x311)*
       x2 - x8 + x9 =E= 0;

e310.. -0.5*((x414 - x313*x212 - x515)/x313 + (x413 - x312*x211 - x514)/x312)*
       x2 - x9 + x10 =E= 0;

e311.. -0.5*((x415 - x314*x213 - x516)/x314 + (x414 - x313*x212 - x515)/x313)*
       x2 - x10 + x11 =E= 0;

e312.. -0.5*((x416 - x315*x214 - x517)/x315 + (x415 - x314*x213 - x516)/x314)*
       x2 - x11 + x12 =E= 0;

e313.. -0.5*((x417 - x316*x215 - x518)/x316 + (x416 - x315*x214 - x517)/x315)*
       x2 - x12 + x13 =E= 0;

e314.. -0.5*((x418 - x317*x216 - x519)/x317 + (x417 - x316*x215 - x518)/x316)*
       x2 - x13 + x14 =E= 0;

e315.. -0.5*((x419 - x318*x217 - x520)/x318 + (x418 - x317*x216 - x519)/x317)*
       x2 - x14 + x15 =E= 0;

e316.. -0.5*((x420 - x319*x218 - x521)/x319 + (x419 - x318*x217 - x520)/x318)*
       x2 - x15 + x16 =E= 0;

e317.. -0.5*((x421 - x320*x219 - x522)/x320 + (x420 - x319*x218 - x521)/x319)*
       x2 - x16 + x17 =E= 0;

e318.. -0.5*((x422 - x321*x220 - x523)/x321 + (x421 - x320*x219 - x522)/x320)*
       x2 - x17 + x18 =E= 0;

e319.. -0.5*((x423 - x322*x221 - x524)/x322 + (x422 - x321*x220 - x523)/x321)*
       x2 - x18 + x19 =E= 0;

e320.. -0.5*((x424 - x323*x222 - x525)/x323 + (x423 - x322*x221 - x524)/x322)*
       x2 - x19 + x20 =E= 0;

e321.. -0.5*((x425 - x324*x223 - x526)/x324 + (x424 - x323*x222 - x525)/x323)*
       x2 - x20 + x21 =E= 0;

e322.. -0.5*((x426 - x325*x224 - x527)/x325 + (x425 - x324*x223 - x526)/x324)*
       x2 - x21 + x22 =E= 0;

e323.. -0.5*((x427 - x326*x225 - x528)/x326 + (x426 - x325*x224 - x527)/x325)*
       x2 - x22 + x23 =E= 0;

e324.. -0.5*((x428 - x327*x226 - x529)/x327 + (x427 - x326*x225 - x528)/x326)*
       x2 - x23 + x24 =E= 0;

e325.. -0.5*((x429 - x328*x227 - x530)/x328 + (x428 - x327*x226 - x529)/x327)*
       x2 - x24 + x25 =E= 0;

e326.. -0.5*((x430 - x329*x228 - x531)/x329 + (x429 - x328*x227 - x530)/x328)*
       x2 - x25 + x26 =E= 0;

e327.. -0.5*((x431 - x330*x229 - x532)/x330 + (x430 - x329*x228 - x531)/x329)*
       x2 - x26 + x27 =E= 0;

e328.. -0.5*((x432 - x331*x230 - x533)/x331 + (x431 - x330*x229 - x532)/x330)*
       x2 - x27 + x28 =E= 0;

e329.. -0.5*((x433 - x332*x231 - x534)/x332 + (x432 - x331*x230 - x533)/x331)*
       x2 - x28 + x29 =E= 0;

e330.. -0.5*((x434 - x333*x232 - x535)/x333 + (x433 - x332*x231 - x534)/x332)*
       x2 - x29 + x30 =E= 0;

e331.. -0.5*((x435 - x334*x233 - x536)/x334 + (x434 - x333*x232 - x535)/x333)*
       x2 - x30 + x31 =E= 0;

e332.. -0.5*((x436 - x335*x234 - x537)/x335 + (x435 - x334*x233 - x536)/x334)*
       x2 - x31 + x32 =E= 0;

e333.. -0.5*((x437 - x336*x235 - x538)/x336 + (x436 - x335*x234 - x537)/x335)*
       x2 - x32 + x33 =E= 0;

e334.. -0.5*((x438 - x337*x236 - x539)/x337 + (x437 - x336*x235 - x538)/x336)*
       x2 - x33 + x34 =E= 0;

e335.. -0.5*((x439 - x338*x237 - x540)/x338 + (x438 - x337*x236 - x539)/x337)*
       x2 - x34 + x35 =E= 0;

e336.. -0.5*((x440 - x339*x238 - x541)/x339 + (x439 - x338*x237 - x540)/x338)*
       x2 - x35 + x36 =E= 0;

e337.. -0.5*((x441 - x340*x239 - x542)/x340 + (x440 - x339*x238 - x541)/x339)*
       x2 - x36 + x37 =E= 0;

e338.. -0.5*((x442 - x341*x240 - x543)/x341 + (x441 - x340*x239 - x542)/x340)*
       x2 - x37 + x38 =E= 0;

e339.. -0.5*((x443 - x342*x241 - x544)/x342 + (x442 - x341*x240 - x543)/x341)*
       x2 - x38 + x39 =E= 0;

e340.. -0.5*((x444 - x343*x242 - x545)/x343 + (x443 - x342*x241 - x544)/x342)*
       x2 - x39 + x40 =E= 0;

e341.. -0.5*((x445 - x344*x243 - x546)/x344 + (x444 - x343*x242 - x545)/x343)*
       x2 - x40 + x41 =E= 0;

e342.. -0.5*((x446 - x345*x244 - x547)/x345 + (x445 - x344*x243 - x546)/x344)*
       x2 - x41 + x42 =E= 0;

e343.. -0.5*((x447 - x346*x245 - x548)/x346 + (x446 - x345*x244 - x547)/x345)*
       x2 - x42 + x43 =E= 0;

e344.. -0.5*((x448 - x347*x246 - x549)/x347 + (x447 - x346*x245 - x548)/x346)*
       x2 - x43 + x44 =E= 0;

e345.. -0.5*((x449 - x348*x247 - x550)/x348 + (x448 - x347*x246 - x549)/x347)*
       x2 - x44 + x45 =E= 0;

e346.. -0.5*((x450 - x349*x248 - x551)/x349 + (x449 - x348*x247 - x550)/x348)*
       x2 - x45 + x46 =E= 0;

e347.. -0.5*((x451 - x350*x249 - x552)/x350 + (x450 - x349*x248 - x551)/x349)*
       x2 - x46 + x47 =E= 0;

e348.. -0.5*((x452 - x351*x250 - x553)/x351 + (x451 - x350*x249 - x552)/x350)*
       x2 - x47 + x48 =E= 0;

e349.. -0.5*((x453 - x352*x251 - x554)/x352 + (x452 - x351*x250 - x553)/x351)*
       x2 - x48 + x49 =E= 0;

e350.. -0.5*((x454 - x353*x252 - x555)/x353 + (x453 - x352*x251 - x554)/x352)*
       x2 - x49 + x50 =E= 0;

e351.. -0.5*((x455 - x354*x253 - x556)/x354 + (x454 - x353*x252 - x555)/x353)*
       x2 - x50 + x51 =E= 0;

e352.. -0.5*((x456 - x355*x254 - x557)/x355 + (x455 - x354*x253 - x556)/x354)*
       x2 - x51 + x52 =E= 0;

e353.. -0.5*((x457 - x356*x255 - x558)/x356 + (x456 - x355*x254 - x557)/x355)*
       x2 - x52 + x53 =E= 0;

e354.. -0.5*((x458 - x357*x256 - x559)/x357 + (x457 - x356*x255 - x558)/x356)*
       x2 - x53 + x54 =E= 0;

e355.. -0.5*((x459 - x358*x257 - x560)/x358 + (x458 - x357*x256 - x559)/x357)*
       x2 - x54 + x55 =E= 0;

e356.. -0.5*((x460 - x359*x258 - x561)/x359 + (x459 - x358*x257 - x560)/x358)*
       x2 - x55 + x56 =E= 0;

e357.. -0.5*((x461 - x360*x259 - x562)/x360 + (x460 - x359*x258 - x561)/x359)*
       x2 - x56 + x57 =E= 0;

e358.. -0.5*((x462 - x361*x260 - x563)/x361 + (x461 - x360*x259 - x562)/x360)*
       x2 - x57 + x58 =E= 0;

e359.. -0.5*((x463 - x362*x261 - x564)/x362 + (x462 - x361*x260 - x563)/x361)*
       x2 - x58 + x59 =E= 0;

e360.. -0.5*((x464 - x363*x262 - x565)/x363 + (x463 - x362*x261 - x564)/x362)*
       x2 - x59 + x60 =E= 0;

e361.. -0.5*((x465 - x364*x263 - x566)/x364 + (x464 - x363*x262 - x565)/x363)*
       x2 - x60 + x61 =E= 0;

e362.. -0.5*((x466 - x365*x264 - x567)/x365 + (x465 - x364*x263 - x566)/x364)*
       x2 - x61 + x62 =E= 0;

e363.. -0.5*((x467 - x366*x265 - x568)/x366 + (x466 - x365*x264 - x567)/x365)*
       x2 - x62 + x63 =E= 0;

e364.. -0.5*((x468 - x367*x266 - x569)/x367 + (x467 - x366*x265 - x568)/x366)*
       x2 - x63 + x64 =E= 0;

e365.. -0.5*((x469 - x368*x267 - x570)/x368 + (x468 - x367*x266 - x569)/x367)*
       x2 - x64 + x65 =E= 0;

e366.. -0.5*((x470 - x369*x268 - x571)/x369 + (x469 - x368*x267 - x570)/x368)*
       x2 - x65 + x66 =E= 0;

e367.. -0.5*((x471 - x370*x269 - x572)/x370 + (x470 - x369*x268 - x571)/x369)*
       x2 - x66 + x67 =E= 0;

e368.. -0.5*((x472 - x371*x270 - x573)/x371 + (x471 - x370*x269 - x572)/x370)*
       x2 - x67 + x68 =E= 0;

e369.. -0.5*((x473 - x372*x271 - x574)/x372 + (x472 - x371*x270 - x573)/x371)*
       x2 - x68 + x69 =E= 0;

e370.. -0.5*((x474 - x373*x272 - x575)/x373 + (x473 - x372*x271 - x574)/x372)*
       x2 - x69 + x70 =E= 0;

e371.. -0.5*((x475 - x374*x273 - x576)/x374 + (x474 - x373*x272 - x575)/x373)*
       x2 - x70 + x71 =E= 0;

e372.. -0.5*((x476 - x375*x274 - x577)/x375 + (x475 - x374*x273 - x576)/x374)*
       x2 - x71 + x72 =E= 0;

e373.. -0.5*((x477 - x376*x275 - x578)/x376 + (x476 - x375*x274 - x577)/x375)*
       x2 - x72 + x73 =E= 0;

e374.. -0.5*((x478 - x377*x276 - x579)/x377 + (x477 - x376*x275 - x578)/x376)*
       x2 - x73 + x74 =E= 0;

e375.. -0.5*((x479 - x378*x277 - x580)/x378 + (x478 - x377*x276 - x579)/x377)*
       x2 - x74 + x75 =E= 0;

e376.. -0.5*((x480 - x379*x278 - x581)/x379 + (x479 - x378*x277 - x580)/x378)*
       x2 - x75 + x76 =E= 0;

e377.. -0.5*((x481 - x380*x279 - x582)/x380 + (x480 - x379*x278 - x581)/x379)*
       x2 - x76 + x77 =E= 0;

e378.. -0.5*((x482 - x381*x280 - x583)/x381 + (x481 - x380*x279 - x582)/x380)*
       x2 - x77 + x78 =E= 0;

e379.. -0.5*((x483 - x382*x281 - x584)/x382 + (x482 - x381*x280 - x583)/x381)*
       x2 - x78 + x79 =E= 0;

e380.. -0.5*((x484 - x383*x282 - x585)/x383 + (x483 - x382*x281 - x584)/x382)*
       x2 - x79 + x80 =E= 0;

e381.. -0.5*((x485 - x384*x283 - x586)/x384 + (x484 - x383*x282 - x585)/x383)*
       x2 - x80 + x81 =E= 0;

e382.. -0.5*((x486 - x385*x284 - x587)/x385 + (x485 - x384*x283 - x586)/x384)*
       x2 - x81 + x82 =E= 0;

e383.. -0.5*((x487 - x386*x285 - x588)/x386 + (x486 - x385*x284 - x587)/x385)*
       x2 - x82 + x83 =E= 0;

e384.. -0.5*((x488 - x387*x286 - x589)/x387 + (x487 - x386*x285 - x588)/x386)*
       x2 - x83 + x84 =E= 0;

e385.. -0.5*((x489 - x388*x287 - x590)/x388 + (x488 - x387*x286 - x589)/x387)*
       x2 - x84 + x85 =E= 0;

e386.. -0.5*((x490 - x389*x288 - x591)/x389 + (x489 - x388*x287 - x590)/x388)*
       x2 - x85 + x86 =E= 0;

e387.. -0.5*((x491 - x390*x289 - x592)/x390 + (x490 - x389*x288 - x591)/x389)*
       x2 - x86 + x87 =E= 0;

e388.. -0.5*((x492 - x391*x290 - x593)/x391 + (x491 - x390*x289 - x592)/x390)*
       x2 - x87 + x88 =E= 0;

e389.. -0.5*((x493 - x392*x291 - x594)/x392 + (x492 - x391*x290 - x593)/x391)*
       x2 - x88 + x89 =E= 0;

e390.. -0.5*((x494 - x393*x292 - x595)/x393 + (x493 - x392*x291 - x594)/x392)*
       x2 - x89 + x90 =E= 0;

e391.. -0.5*((x495 - x394*x293 - x596)/x394 + (x494 - x393*x292 - x595)/x393)*
       x2 - x90 + x91 =E= 0;

e392.. -0.5*((x496 - x395*x294 - x597)/x395 + (x495 - x394*x293 - x596)/x394)*
       x2 - x91 + x92 =E= 0;

e393.. -0.5*((x497 - x396*x295 - x598)/x396 + (x496 - x395*x294 - x597)/x395)*
       x2 - x92 + x93 =E= 0;

e394.. -0.5*((x498 - x397*x296 - x599)/x397 + (x497 - x396*x295 - x598)/x396)*
       x2 - x93 + x94 =E= 0;

e395.. -0.5*((x499 - x398*x297 - x600)/x398 + (x498 - x397*x296 - x599)/x397)*
       x2 - x94 + x95 =E= 0;

e396.. -0.5*((x500 - x399*x298 - x601)/x399 + (x499 - x398*x297 - x600)/x398)*
       x2 - x95 + x96 =E= 0;

e397.. -0.5*((x501 - x400*x299 - x602)/x400 + (x500 - x399*x298 - x601)/x399)*
       x2 - x96 + x97 =E= 0;

e398.. -0.5*((x502 - x401*x300 - x603)/x401 + (x501 - x400*x299 - x602)/x400)*
       x2 - x97 + x98 =E= 0;

e399.. -0.5*((x503 - x402*x301 - x604)/x402 + (x502 - x401*x300 - x603)/x401)*
       x2 - x98 + x99 =E= 0;

e400.. -0.5*((x504 - x403*x302 - x605)/x403 + (x503 - x402*x301 - x604)/x402)*
       x2 - x99 + x100 =E= 0;

e401.. -0.5*((x505 - x404*x303 - x606)/x404 + (x504 - x403*x302 - x605)/x403)*
       x2 - x100 + x101 =E= 0;

e402.. -0.5*((x506 - x405*x304 - x607)/x405 + (x505 - x404*x303 - x606)/x404)*
       x2 - x101 + x102 =E= 0;

e403.. -0.5*((x507 - x406*x305 - x608)/x406 + (x506 - x405*x304 - x607)/x405)*
       x2 - x102 + x103 =E= 0;

e404.. x2*(x407 + x408) - x306 + x307 =E= 0;

e405.. x2*(x408 + x409) - x307 + x308 =E= 0;

e406.. x2*(x409 + x410) - x308 + x309 =E= 0;

e407.. x2*(x410 + x411) - x309 + x310 =E= 0;

e408.. x2*(x411 + x412) - x310 + x311 =E= 0;

e409.. x2*(x412 + x413) - x311 + x312 =E= 0;

e410.. x2*(x413 + x414) - x312 + x313 =E= 0;

e411.. x2*(x414 + x415) - x313 + x314 =E= 0;

e412.. x2*(x415 + x416) - x314 + x315 =E= 0;

e413.. x2*(x416 + x417) - x315 + x316 =E= 0;

e414.. x2*(x417 + x418) - x316 + x317 =E= 0;

e415.. x2*(x418 + x419) - x317 + x318 =E= 0;

e416.. x2*(x419 + x420) - x318 + x319 =E= 0;

e417.. x2*(x420 + x421) - x319 + x320 =E= 0;

e418.. x2*(x421 + x422) - x320 + x321 =E= 0;

e419.. x2*(x422 + x423) - x321 + x322 =E= 0;

e420.. x2*(x423 + x424) - x322 + x323 =E= 0;

e421.. x2*(x424 + x425) - x323 + x324 =E= 0;

e422.. x2*(x425 + x426) - x324 + x325 =E= 0;

e423.. x2*(x426 + x427) - x325 + x326 =E= 0;

e424.. x2*(x427 + x428) - x326 + x327 =E= 0;

e425.. x2*(x428 + x429) - x327 + x328 =E= 0;

e426.. x2*(x429 + x430) - x328 + x329 =E= 0;

e427.. x2*(x430 + x431) - x329 + x330 =E= 0;

e428.. x2*(x431 + x432) - x330 + x331 =E= 0;

e429.. x2*(x432 + x433) - x331 + x332 =E= 0;

e430.. x2*(x433 + x434) - x332 + x333 =E= 0;

e431.. x2*(x434 + x435) - x333 + x334 =E= 0;

e432.. x2*(x435 + x436) - x334 + x335 =E= 0;

e433.. x2*(x436 + x437) - x335 + x336 =E= 0;

e434.. x2*(x437 + x438) - x336 + x337 =E= 0;

e435.. x2*(x438 + x439) - x337 + x338 =E= 0;

e436.. x2*(x439 + x440) - x338 + x339 =E= 0;

e437.. x2*(x440 + x441) - x339 + x340 =E= 0;

e438.. x2*(x441 + x442) - x340 + x341 =E= 0;

e439.. x2*(x442 + x443) - x341 + x342 =E= 0;

e440.. x2*(x443 + x444) - x342 + x343 =E= 0;

e441.. x2*(x444 + x445) - x343 + x344 =E= 0;

e442.. x2*(x445 + x446) - x344 + x345 =E= 0;

e443.. x2*(x446 + x447) - x345 + x346 =E= 0;

e444.. x2*(x447 + x448) - x346 + x347 =E= 0;

e445.. x2*(x448 + x449) - x347 + x348 =E= 0;

e446.. x2*(x449 + x450) - x348 + x349 =E= 0;

e447.. x2*(x450 + x451) - x349 + x350 =E= 0;

e448.. x2*(x451 + x452) - x350 + x351 =E= 0;

e449.. x2*(x452 + x453) - x351 + x352 =E= 0;

e450.. x2*(x453 + x454) - x352 + x353 =E= 0;

e451.. x2*(x454 + x455) - x353 + x354 =E= 0;

e452.. x2*(x455 + x456) - x354 + x355 =E= 0;

e453.. x2*(x456 + x457) - x355 + x356 =E= 0;

e454.. x2*(x457 + x458) - x356 + x357 =E= 0;

e455.. x2*(x458 + x459) - x357 + x358 =E= 0;

e456.. x2*(x459 + x460) - x358 + x359 =E= 0;

e457.. x2*(x460 + x461) - x359 + x360 =E= 0;

e458.. x2*(x461 + x462) - x360 + x361 =E= 0;

e459.. x2*(x462 + x463) - x361 + x362 =E= 0;

e460.. x2*(x463 + x464) - x362 + x363 =E= 0;

e461.. x2*(x464 + x465) - x363 + x364 =E= 0;

e462.. x2*(x465 + x466) - x364 + x365 =E= 0;

e463.. x2*(x466 + x467) - x365 + x366 =E= 0;

e464.. x2*(x467 + x468) - x366 + x367 =E= 0;

e465.. x2*(x468 + x469) - x367 + x368 =E= 0;

e466.. x2*(x469 + x470) - x368 + x369 =E= 0;

e467.. x2*(x470 + x471) - x369 + x370 =E= 0;

e468.. x2*(x471 + x472) - x370 + x371 =E= 0;

e469.. x2*(x472 + x473) - x371 + x372 =E= 0;

e470.. x2*(x473 + x474) - x372 + x373 =E= 0;

e471.. x2*(x474 + x475) - x373 + x374 =E= 0;

e472.. x2*(x475 + x476) - x374 + x375 =E= 0;

e473.. x2*(x476 + x477) - x375 + x376 =E= 0;

e474.. x2*(x477 + x478) - x376 + x377 =E= 0;

e475.. x2*(x478 + x479) - x377 + x378 =E= 0;

e476.. x2*(x479 + x480) - x378 + x379 =E= 0;

e477.. x2*(x480 + x481) - x379 + x380 =E= 0;

e478.. x2*(x481 + x482) - x380 + x381 =E= 0;

e479.. x2*(x482 + x483) - x381 + x382 =E= 0;

e480.. x2*(x483 + x484) - x382 + x383 =E= 0;

e481.. x2*(x484 + x485) - x383 + x384 =E= 0;

e482.. x2*(x485 + x486) - x384 + x385 =E= 0;

e483.. x2*(x486 + x487) - x385 + x386 =E= 0;

e484.. x2*(x487 + x488) - x386 + x387 =E= 0;

e485.. x2*(x488 + x489) - x387 + x388 =E= 0;

e486.. x2*(x489 + x490) - x388 + x389 =E= 0;

e487.. x2*(x490 + x491) - x389 + x390 =E= 0;

e488.. x2*(x491 + x492) - x390 + x391 =E= 0;

e489.. x2*(x492 + x493) - x391 + x392 =E= 0;

e490.. x2*(x493 + x494) - x392 + x393 =E= 0;

e491.. x2*(x494 + x495) - x393 + x394 =E= 0;

e492.. x2*(x495 + x496) - x394 + x395 =E= 0;

e493.. x2*(x496 + x497) - x395 + x396 =E= 0;

e494.. x2*(x497 + x498) - x396 + x397 =E= 0;

e495.. x2*(x498 + x499) - x397 + x398 =E= 0;

e496.. x2*(x499 + x500) - x398 + x399 =E= 0;

e497.. x2*(x500 + x501) - x399 + x400 =E= 0;

e498.. x2*(x501 + x502) - x400 + x401 =E= 0;

e499.. x2*(x502 + x503) - x401 + x402 =E= 0;

e500.. x2*(x503 + x504) - x402 + x403 =E= 0;

e501.. x2*(x504 + x505) - x403 + x404 =E= 0;

e502.. x2*(x505 + x506) - x404 + x405 =E= 0;

e503.. x2*(x506 + x507) - x405 + x406 =E= 0;

* set non-default bounds
x3.fx = 0;
x104.fx = 1;
x105.lo = 1;
x106.lo = 1;
x107.lo = 1;
x108.lo = 1;
x109.lo = 1;
x110.lo = 1;
x111.lo = 1;
x112.lo = 1;
x113.lo = 1;
x114.lo = 1;
x115.lo = 1;
x116.lo = 1;
x117.lo = 1;
x118.lo = 1;
x119.lo = 1;
x120.lo = 1;
x121.lo = 1;
x122.lo = 1;
x123.lo = 1;
x124.lo = 1;
x125.lo = 1;
x126.lo = 1;
x127.lo = 1;
x128.lo = 1;
x129.lo = 1;
x130.lo = 1;
x131.lo = 1;
x132.lo = 1;
x133.lo = 1;
x134.lo = 1;
x135.lo = 1;
x136.lo = 1;
x137.lo = 1;
x138.lo = 1;
x139.lo = 1;
x140.lo = 1;
x141.lo = 1;
x142.lo = 1;
x143.lo = 1;
x144.lo = 1;
x145.lo = 1;
x146.lo = 1;
x147.lo = 1;
x148.lo = 1;
x149.lo = 1;
x150.lo = 1;
x151.lo = 1;
x152.lo = 1;
x153.lo = 1;
x154.lo = 1;
x155.lo = 1;
x156.lo = 1;
x157.lo = 1;
x158.lo = 1;
x159.lo = 1;
x160.lo = 1;
x161.lo = 1;
x162.lo = 1;
x163.lo = 1;
x164.lo = 1;
x165.lo = 1;
x166.lo = 1;
x167.lo = 1;
x168.lo = 1;
x169.lo = 1;
x170.lo = 1;
x171.lo = 1;
x172.lo = 1;
x173.lo = 1;
x174.lo = 1;
x175.lo = 1;
x176.lo = 1;
x177.lo = 1;
x178.lo = 1;
x179.lo = 1;
x180.lo = 1;
x181.lo = 1;
x182.lo = 1;
x183.lo = 1;
x184.lo = 1;
x185.lo = 1;
x186.lo = 1;
x187.lo = 1;
x188.lo = 1;
x189.lo = 1;
x190.lo = 1;
x191.lo = 1;
x192.lo = 1;
x193.lo = 1;
x194.lo = 1;
x195.lo = 1;
x196.lo = 1;
x197.lo = 1;
x198.lo = 1;
x199.lo = 1;
x200.lo = 1;
x201.lo = 1;
x202.lo = 1;
x203.lo = 1;
x204.lo = 1;
x306.fx = 1;
x307.lo = 0.6; x307.up = 1;
x308.lo = 0.6; x308.up = 1;
x309.lo = 0.6; x309.up = 1;
x310.lo = 0.6; x310.up = 1;
x311.lo = 0.6; x311.up = 1;
x312.lo = 0.6; x312.up = 1;
x313.lo = 0.6; x313.up = 1;
x314.lo = 0.6; x314.up = 1;
x315.lo = 0.6; x315.up = 1;
x316.lo = 0.6; x316.up = 1;
x317.lo = 0.6; x317.up = 1;
x318.lo = 0.6; x318.up = 1;
x319.lo = 0.6; x319.up = 1;
x320.lo = 0.6; x320.up = 1;
x321.lo = 0.6; x321.up = 1;
x322.lo = 0.6; x322.up = 1;
x323.lo = 0.6; x323.up = 1;
x324.lo = 0.6; x324.up = 1;
x325.lo = 0.6; x325.up = 1;
x326.lo = 0.6; x326.up = 1;
x327.lo = 0.6; x327.up = 1;
x328.lo = 0.6; x328.up = 1;
x329.lo = 0.6; x329.up = 1;
x330.lo = 0.6; x330.up = 1;
x331.lo = 0.6; x331.up = 1;
x332.lo = 0.6; x332.up = 1;
x333.lo = 0.6; x333.up = 1;
x334.lo = 0.6; x334.up = 1;
x335.lo = 0.6; x335.up = 1;
x336.lo = 0.6; x336.up = 1;
x337.lo = 0.6; x337.up = 1;
x338.lo = 0.6; x338.up = 1;
x339.lo = 0.6; x339.up = 1;
x340.lo = 0.6; x340.up = 1;
x341.lo = 0.6; x341.up = 1;
x342.lo = 0.6; x342.up = 1;
x343.lo = 0.6; x343.up = 1;
x344.lo = 0.6; x344.up = 1;
x345.lo = 0.6; x345.up = 1;
x346.lo = 0.6; x346.up = 1;
x347.lo = 0.6; x347.up = 1;
x348.lo = 0.6; x348.up = 1;
x349.lo = 0.6; x349.up = 1;
x350.lo = 0.6; x350.up = 1;
x351.lo = 0.6; x351.up = 1;
x352.lo = 0.6; x352.up = 1;
x353.lo = 0.6; x353.up = 1;
x354.lo = 0.6; x354.up = 1;
x355.lo = 0.6; x355.up = 1;
x356.lo = 0.6; x356.up = 1;
x357.lo = 0.6; x357.up = 1;
x358.lo = 0.6; x358.up = 1;
x359.lo = 0.6; x359.up = 1;
x360.lo = 0.6; x360.up = 1;
x361.lo = 0.6; x361.up = 1;
x362.lo = 0.6; x362.up = 1;
x363.lo = 0.6; x363.up = 1;
x364.lo = 0.6; x364.up = 1;
x365.lo = 0.6; x365.up = 1;
x366.lo = 0.6; x366.up = 1;
x367.lo = 0.6; x367.up = 1;
x368.lo = 0.6; x368.up = 1;
x369.lo = 0.6; x369.up = 1;
x370.lo = 0.6; x370.up = 1;
x371.lo = 0.6; x371.up = 1;
x372.lo = 0.6; x372.up = 1;
x373.lo = 0.6; x373.up = 1;
x374.lo = 0.6; x374.up = 1;
x375.lo = 0.6; x375.up = 1;
x376.lo = 0.6; x376.up = 1;
x377.lo = 0.6; x377.up = 1;
x378.lo = 0.6; x378.up = 1;
x379.lo = 0.6; x379.up = 1;
x380.lo = 0.6; x380.up = 1;
x381.lo = 0.6; x381.up = 1;
x382.lo = 0.6; x382.up = 1;
x383.lo = 0.6; x383.up = 1;
x384.lo = 0.6; x384.up = 1;
x385.lo = 0.6; x385.up = 1;
x386.lo = 0.6; x386.up = 1;
x387.lo = 0.6; x387.up = 1;
x388.lo = 0.6; x388.up = 1;
x389.lo = 0.6; x389.up = 1;
x390.lo = 0.6; x390.up = 1;
x391.lo = 0.6; x391.up = 1;
x392.lo = 0.6; x392.up = 1;
x393.lo = 0.6; x393.up = 1;
x394.lo = 0.6; x394.up = 1;
x395.lo = 0.6; x395.up = 1;
x396.lo = 0.6; x396.up = 1;
x397.lo = 0.6; x397.up = 1;
x398.lo = 0.6; x398.up = 1;
x399.lo = 0.6; x399.up = 1;
x400.lo = 0.6; x400.up = 1;
x401.lo = 0.6; x401.up = 1;
x402.lo = 0.6; x402.up = 1;
x403.lo = 0.6; x403.up = 1;
x404.lo = 0.6; x404.up = 1;
x405.lo = 0.6; x405.up = 1;
x406.fx = 0.6;
x407.up = 3.5;
x408.up = 3.5;
x409.up = 3.5;
x410.up = 3.5;
x411.up = 3.5;
x412.up = 3.5;
x413.up = 3.5;
x414.up = 3.5;
x415.up = 3.5;
x416.up = 3.5;
x417.up = 3.5;
x418.up = 3.5;
x419.up = 3.5;
x420.up = 3.5;
x421.up = 3.5;
x422.up = 3.5;
x423.up = 3.5;
x424.up = 3.5;
x425.up = 3.5;
x426.up = 3.5;
x427.up = 3.5;
x428.up = 3.5;
x429.up = 3.5;
x430.up = 3.5;
x431.up = 3.5;
x432.up = 3.5;
x433.up = 3.5;
x434.up = 3.5;
x435.up = 3.5;
x436.up = 3.5;
x437.up = 3.5;
x438.up = 3.5;
x439.up = 3.5;
x440.up = 3.5;
x441.up = 3.5;
x442.up = 3.5;
x443.up = 3.5;
x444.up = 3.5;
x445.up = 3.5;
x446.up = 3.5;
x447.up = 3.5;
x448.up = 3.5;
x449.up = 3.5;
x450.up = 3.5;
x451.up = 3.5;
x452.up = 3.5;
x453.up = 3.5;
x454.up = 3.5;
x455.up = 3.5;
x456.up = 3.5;
x457.up = 3.5;
x458.up = 3.5;
x459.up = 3.5;
x460.up = 3.5;
x461.up = 3.5;
x462.up = 3.5;
x463.up = 3.5;
x464.up = 3.5;
x465.up = 3.5;
x466.up = 3.5;
x467.up = 3.5;
x468.up = 3.5;
x469.up = 3.5;
x470.up = 3.5;
x471.up = 3.5;
x472.up = 3.5;
x473.up = 3.5;
x474.up = 3.5;
x475.up = 3.5;
x476.up = 3.5;
x477.up = 3.5;
x478.up = 3.5;
x479.up = 3.5;
x480.up = 3.5;
x481.up = 3.5;
x482.up = 3.5;
x483.up = 3.5;
x484.up = 3.5;
x485.up = 3.5;
x486.up = 3.5;
x487.up = 3.5;
x488.up = 3.5;
x489.up = 3.5;
x490.up = 3.5;
x491.up = 3.5;
x492.up = 3.5;
x493.up = 3.5;
x494.up = 3.5;
x495.up = 3.5;
x496.up = 3.5;
x497.up = 3.5;
x498.up = 3.5;
x499.up = 3.5;
x500.up = 3.5;
x501.up = 3.5;
x502.up = 3.5;
x503.up = 3.5;
x504.up = 3.5;
x505.up = 3.5;
x506.up = 3.5;
x507.up = 3.5;

* set non-default levels
x2.l = 0.01;
x4.l = 0.0196;
x5.l = 0.0291;
x6.l = 0.0384;
x7.l = 0.0475;
x8.l = 0.0564;
x9.l = 0.0651;
x10.l = 0.0736;
x11.l = 0.0819;
x12.l = 0.09;
x13.l = 0.0979;
x14.l = 0.1056;
x15.l = 0.1131;
x16.l = 0.1204;
x17.l = 0.1275;
x18.l = 0.1344;
x19.l = 0.1411;
x20.l = 0.1476;
x21.l = 0.1539;
x22.l = 0.16;
x23.l = 0.1659;
x24.l = 0.1716;
x25.l = 0.1771;
x26.l = 0.1824;
x27.l = 0.1875;
x28.l = 0.1924;
x29.l = 0.1971;
x30.l = 0.2016;
x31.l = 0.2059;
x32.l = 0.21;
x33.l = 0.2139;
x34.l = 0.2176;
x35.l = 0.2211;
x36.l = 0.2244;
x37.l = 0.2275;
x38.l = 0.2304;
x39.l = 0.2331;
x40.l = 0.2356;
x41.l = 0.2379;
x42.l = 0.24;
x43.l = 0.2419;
x44.l = 0.2436;
x45.l = 0.2451;
x46.l = 0.2464;
x47.l = 0.2475;
x48.l = 0.2484;
x49.l = 0.2491;
x50.l = 0.2496;
x51.l = 0.2499;
x52.l = 0.25;
x53.l = 0.2499;
x54.l = 0.2496;
x55.l = 0.2491;
x56.l = 0.2484;
x57.l = 0.2475;
x58.l = 0.2464;
x59.l = 0.2451;
x60.l = 0.2436;
x61.l = 0.2419;
x62.l = 0.24;
x63.l = 0.2379;
x64.l = 0.2356;
x65.l = 0.2331;
x66.l = 0.2304;
x67.l = 0.2275;
x68.l = 0.2244;
x69.l = 0.2211;
x70.l = 0.2176;
x71.l = 0.2139;
x72.l = 0.21;
x73.l = 0.2059;
x74.l = 0.2016;
x75.l = 0.1971;
x76.l = 0.1924;
x77.l = 0.1875;
x78.l = 0.1824;
x79.l = 0.1771;
x80.l = 0.1716;
x81.l = 0.1659;
x82.l = 0.16;
x83.l = 0.1539;
x84.l = 0.1476;
x85.l = 0.1411;
x86.l = 0.1344;
x87.l = 0.1275;
x88.l = 0.1204;
x89.l = 0.1131;
x90.l = 0.1056;
x91.l = 0.0979;
x92.l = 0.09;
x93.l = 0.0819;
x94.l = 0.0736;
x95.l = 0.0651;
x96.l = 0.0564;
x97.l = 0.0475;
x98.l = 0.0384;
x99.l = 0.0291;
x100.l = 0.0196;
x101.l = 0.00990000000000001;
x307.l = 0.992;
x308.l = 0.988;
x309.l = 0.984;
x310.l = 0.98;
x311.l = 0.976;
x312.l = 0.972;
x313.l = 0.968;
x314.l = 0.964;
x315.l = 0.96;
x316.l = 0.956;
x317.l = 0.952;
x318.l = 0.948;
x319.l = 0.944;
x320.l = 0.94;
x321.l = 0.936;
x322.l = 0.932;
x323.l = 0.928;
x324.l = 0.924;
x325.l = 0.92;
x326.l = 0.916;
x327.l = 0.912;
x328.l = 0.908;
x329.l = 0.904;
x330.l = 0.9;
x331.l = 0.896;
x332.l = 0.892;
x333.l = 0.888;
x334.l = 0.884;
x335.l = 0.88;
x336.l = 0.876;
x337.l = 0.872;
x338.l = 0.868;
x339.l = 0.864;
x340.l = 0.86;
x341.l = 0.856;
x342.l = 0.852;
x343.l = 0.848;
x344.l = 0.844;
x345.l = 0.84;
x346.l = 0.836;
x347.l = 0.832;
x348.l = 0.828;
x349.l = 0.824;
x350.l = 0.82;
x351.l = 0.816;
x352.l = 0.812;
x353.l = 0.808;
x354.l = 0.804;
x355.l = 0.8;
x356.l = 0.796;
x357.l = 0.792;
x358.l = 0.788;
x359.l = 0.784;
x360.l = 0.78;
x361.l = 0.776;
x362.l = 0.772;
x363.l = 0.768;
x364.l = 0.764;
x365.l = 0.76;
x366.l = 0.756;
x367.l = 0.752;
x368.l = 0.748;
x369.l = 0.744;
x370.l = 0.74;
x371.l = 0.736;
x372.l = 0.732;
x373.l = 0.728;
x374.l = 0.724;
x375.l = 0.72;
x376.l = 0.716;
x377.l = 0.712;
x378.l = 0.708;
x379.l = 0.704;
x380.l = 0.7;
x381.l = 0.696;
x382.l = 0.692;
x383.l = 0.688;
x384.l = 0.684;
x385.l = 0.68;
x386.l = 0.676;
x387.l = 0.672;
x388.l = 0.668;
x389.l = 0.664;
x390.l = 0.66;
x391.l = 0.656;
x392.l = 0.652;
x393.l = 0.648;
x394.l = 0.644;
x395.l = 0.64;
x396.l = 0.636;
x397.l = 0.632;
x398.l = 0.628;
x399.l = 0.624;
x400.l = 0.62;
x401.l = 0.616;
x402.l = 0.612;
x403.l = 0.608;
x404.l = 0.604;
x407.l = 1.75;
x408.l = 1.75;
x409.l = 1.75;
x410.l = 1.75;
x411.l = 1.75;
x412.l = 1.75;
x413.l = 1.75;
x414.l = 1.75;
x415.l = 1.75;
x416.l = 1.75;
x417.l = 1.75;
x418.l = 1.75;
x419.l = 1.75;
x420.l = 1.75;
x421.l = 1.75;
x422.l = 1.75;
x423.l = 1.75;
x424.l = 1.75;
x425.l = 1.75;
x426.l = 1.75;
x427.l = 1.75;
x428.l = 1.75;
x429.l = 1.75;
x430.l = 1.75;
x431.l = 1.75;
x432.l = 1.75;
x433.l = 1.75;
x434.l = 1.75;
x435.l = 1.75;
x436.l = 1.75;
x437.l = 1.75;
x438.l = 1.75;
x439.l = 1.75;
x440.l = 1.75;
x441.l = 1.75;
x442.l = 1.75;
x443.l = 1.75;
x444.l = 1.75;
x445.l = 1.75;
x446.l = 1.75;
x447.l = 1.75;
x448.l = 1.75;
x449.l = 1.75;
x450.l = 1.75;
x451.l = 1.75;
x452.l = 1.75;
x453.l = 1.75;
x454.l = 1.75;
x455.l = 1.75;
x456.l = 1.75;
x457.l = 1.75;
x458.l = 1.75;
x459.l = 1.75;
x460.l = 1.75;
x461.l = 1.75;
x462.l = 1.75;
x463.l = 1.75;
x464.l = 1.75;
x465.l = 1.75;
x466.l = 1.75;
x467.l = 1.75;
x468.l = 1.75;
x469.l = 1.75;
x470.l = 1.75;
x471.l = 1.75;
x472.l = 1.75;
x473.l = 1.75;
x474.l = 1.75;
x475.l = 1.75;
x476.l = 1.75;
x477.l = 1.75;
x478.l = 1.75;
x479.l = 1.75;
x480.l = 1.75;
x481.l = 1.75;
x482.l = 1.75;
x483.l = 1.75;
x484.l = 1.75;
x485.l = 1.75;
x486.l = 1.75;
x487.l = 1.75;
x488.l = 1.75;
x489.l = 1.75;
x490.l = 1.75;
x491.l = 1.75;
x492.l = 1.75;
x493.l = 1.75;
x494.l = 1.75;
x495.l = 1.75;
x496.l = 1.75;
x497.l = 1.75;
x498.l = 1.75;
x499.l = 1.75;
x500.l = 1.75;
x501.l = 1.75;
x502.l = 1.75;
x503.l = 1.75;
x504.l = 1.75;
x505.l = 1.75;
x506.l = 1.75;
x507.l = 1.75;

Model m / all /;

m.limrow=0; m.limcol=0;
m.tolproj=0.0;

$if NOT '%gams.u1%' == '' $include '%gams.u1%'

$if not set NLP $set NLP NLP
Solve m using %NLP% minimizing objvar;


Last updated: 2022-08-11 Git hash: f176bd52
Imprint / Privacy Policy / License: CC-BY 4.0
